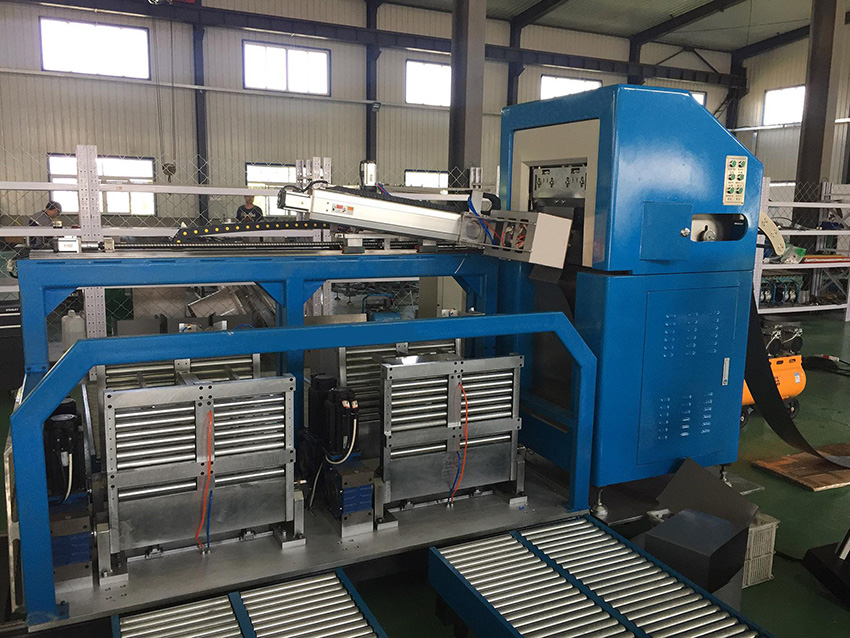

RECTANGLE OPEN CORE AUTOMATIC MACHINE(TYPE:AUTO-410A)
Our company owns a professional R&D team,strict control product quality and management system, to provide individualized product solutions.

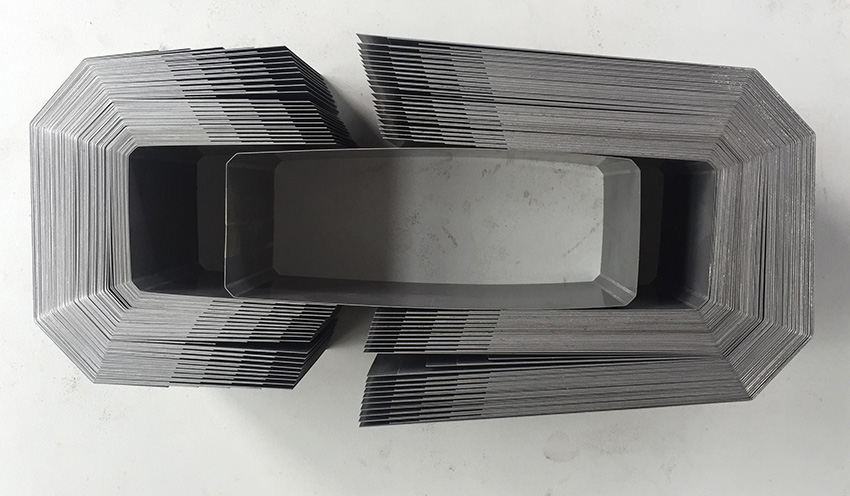

This machine can manufacture the rectangle open core and take out the silicon by automatically
1  The informations of components:
(1)We use motion controller to control the movements of the whole machine,the motion controller is TRIO,which is from UK;
  (2)The electrical control system use of JAPAN Panasonic servo motors(include:cutting and bending machine,automatic take out machine) ;
  (3)All of the electrical components are form French Schneider;
  (4)All the cylinder components are form Japan SMC;
  (5)All of the bearings, linear guide, linear bearing etc. are form SKF(Sweden) and NSK and Misumi (Japan);
  (6)The decoiler electrical depart use Delta to control, ensure the stability of its quality;
2  Performance  parameter:
    Produce the transformer's informations:High voltage,10～35kV;Capacity,30kVA～3150KVA;Oil transformer、Dry transformer、Traction transformer and so on.
  (1)Processing single ribbon of silicon steel sheet，Width of silicon steel sheet ≤400mm；
  (2)Processing double ribbons of silicon steel sheet，Width of silicon steel sheet ≤185mm；
  (3)The equipment has the function of speed regulation, which can be adjusted according to the operator's proficiency,speed:0～0.5m/s；
  (4)The blades is made of cemented carbide；
  (5)The bending angle of silicon steel sheet is 45°;
  (6)Overall size:8m×5m×5m.
(7)WL(mm):130～500;
(8)WW(mm):95～350;
(9)Sw(mm):30～185mm(2 strips),185～400mm(1 strip);
(10)ST(mm):0.20～0.35mm;
(11)BUp(mm):20～120;
(12)Max1/2 core mass:200kg(2 strips),300kg(1 strip)
